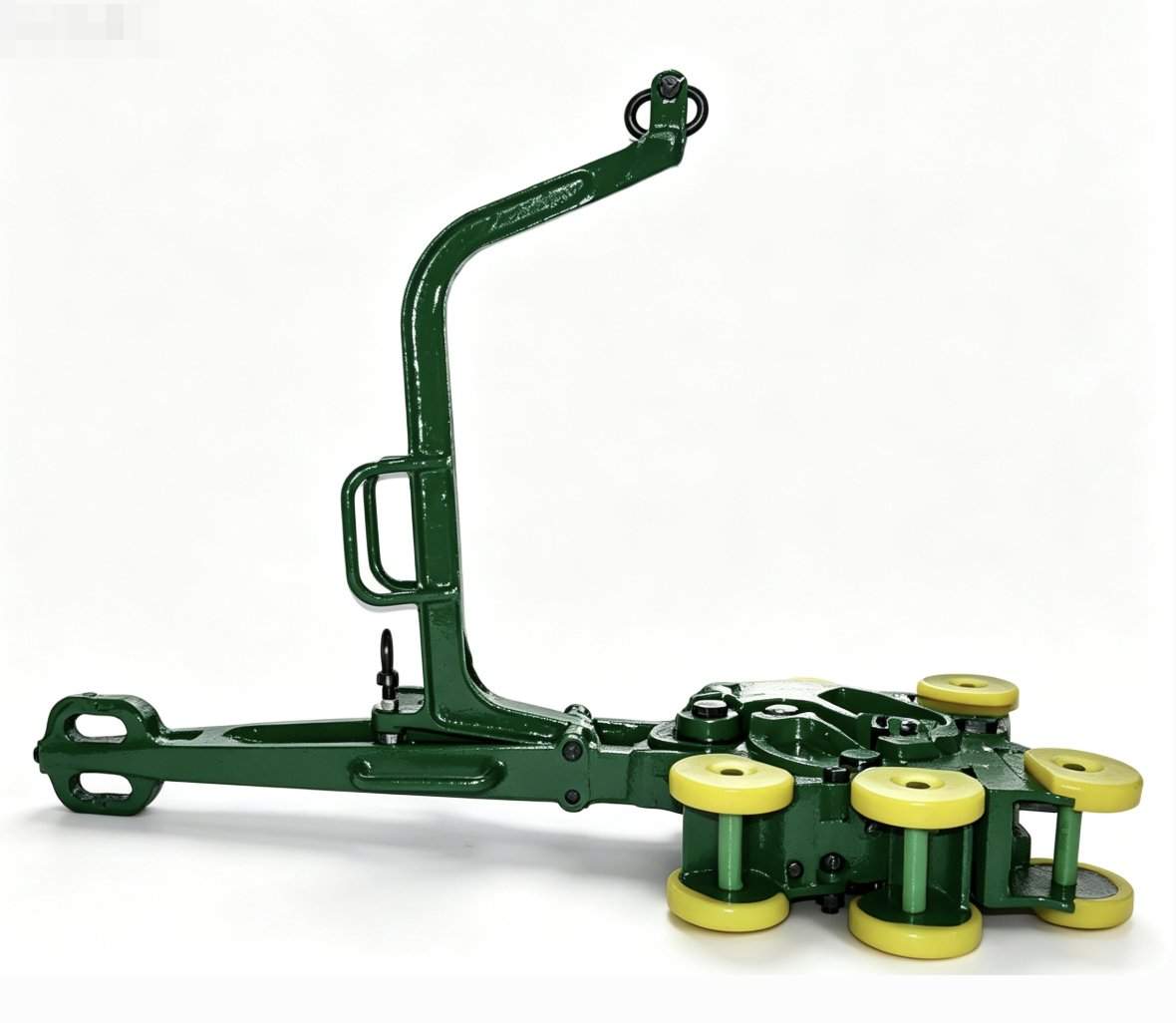

O Manual Tongs Type HT e uma ferramenta essencial para operacoes de make-up e break-out de tubos durante perfuracao ou workover. Pode ser usado em diferentes tubos atraves da troca de tong jaw e lug jaw shoulder. Otimizado a partir do design original das series SDD, DB, B e C.
Possui protetor de mao (hand guard) projetado no lug jaw e long jaw para evitar lesoes nos dedos durante a operacao. Classificado em HT100, HT65, HT55, HT35, HT50 e outras series (consulte tabelas), a producao do manual tong segue rigorosamente a norma API Spec 7K.
| Lug Jaw No. | Short Jaw No. | Hinge Jaw No. | Diametro (pol/mm) | Torque (kNm) |
| 1# | 1# | / | 2 3/8 – 3,668 / 60,33-93,17 | 20 |
| 2# | 1# | / | 2 7/8 – 4 1/4 / 73,03-108 | 34 |
| 3# | 1# | / | 3 1/2 – 5 1/4 / 88,9-133,35 | 34 |
| 4# | 1# | / | 5 1/4 – 7 / 133,35-177,8 | 48 |
| 5# | 2# | 1 | 7 – 8 5/8 / 177,8-219,08 | 34 |
| 6# | 2# | 2 | 9 5/8 – 10 3/4 / 244,5-273,05 | 43 |
| Lug Jaw No. | Diametro (pol/mm) | Torque (kNm) |
| 1# | 3 1/2 – 4 1/8 / 88,9-104,78 | 75 |
| 2# | 5 – 5 3/4 / 127-146,05 | 75 |
| 3# | 6 5/8 – 7 1/4 / 168,28-184,15 | 55 |
| 4# | 9 – 9 5/8 / 228,6-244,48 | 55 |
| 5# | 11 3/4 / 298,45 | 55 |
| 6# | 12 3/4 – 13 / 323,85-330,2 | 40 |
| 7# | 13 3/8 / 339,73 | 40 |
| Lug Jaw No. | Hinge Pin Hole No. | Diametro (pol/mm) | Torque (kNm) |
| 1# | 1 | 3 1/2 – 6 / 88,9-152 | 90 |
| 2 | 4 1/2 – 7 / 114-178 | 90 | |
| 3 | 5 1/2 – 8 1/4 / 140-210 | 90 | |
| 2# | 1 | 8 – 9 5/8 / 203-244 | 55 |
| 2 | 9 5/8 – 11 1/4 / 244-286 | 55 | |
| 3# | 1 | 11 3/4 – 12 3/4 / 298-324 | 55 |
| 2 | 13 3/8 – 14 3/8 / 340-365 | 55 | |
| 4# | 2 | 16 – 17 / 406-432 | 55 |
| Lug Jaw No. | Hinge Pin Hole | Lug Jaw Shoulder | Diametro (pol/mm) | Torque (kNm) |
| 1# | 1 | 1 | 4 – 5 1/2 / 101,6-139,7 | 135 |
| 2# | 1 | 1 | 8 1/2 – 9 / 215,9-228,6 | 135 |
| 3# | 1 | 1 | 12 – 12 3/4 / 304,8-323,8 | 100 |
| 4# | 2 | 1 | 15 3/4 / 400 | 80 |
| 5# | 2 | 1 | 16 – 17 / 406,4-431,8 | 80 |
| Hinge Jaw No. | Diametro (pol/mm) | Torque (kNm) |
| 9, 8 | 13 3/8 – 14 1/2 / 340-368,3 | 70 |
| 8, 7 | 14 1/2 – 16 / 368,3-406,4 | 70 |
| 8, 9, 9 | 16 – 17 1/2 / 406,4-444,5 | 70 |
| 8, 9, 7 | 17 1/2 – 19 / 444,5-482,6 | 70 |
| 7, 8, 7 | 19 – 20 / 482,6-508 | 70 |
| 9, 8, 9, 7 | 20 – 21 1/2 / 508-546,1 | 70 |
| 9, 7, 8, 7 | 21 1/2 – 23 / 546,1-584,2 | 70 |
| 9, 9, 8, 7, 7 | 24 – 25 1/2 / 609,6-647,7 | 70 |
Sob Consulta
Preco varia conforme serie (HT35/HT55/HT65/HT100/HT50) e quantidade. Pedido minimo: 1 Unidade. Prazo: 30-45 dias. Pagamento: T/T ou L/C.
Envie suas especificações e receba uma cotação competitiva em até 24 horas
