Marca: CAMTOP SHANGHAI | Certificacao: API 6A, NACE MR-0175, ISO 15156, ASME B31.3, PED 97/23/EC

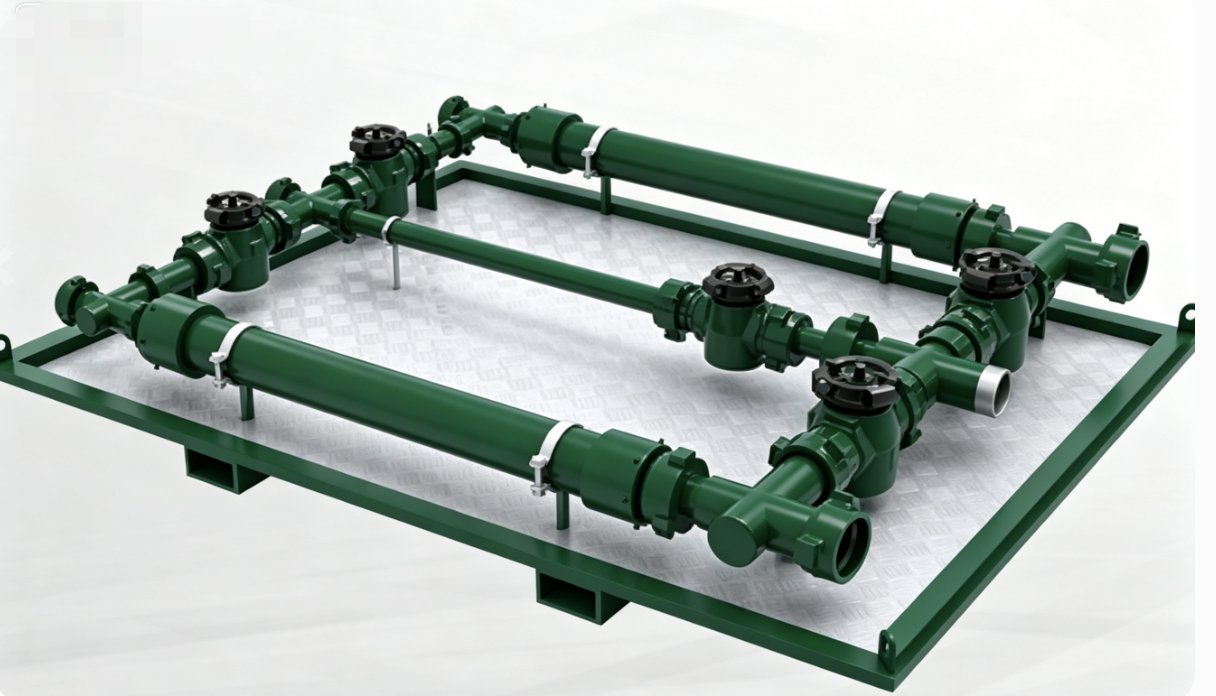

O Debris Catcher Plug Valve Manifold CAMTOP e um tipo especial de manifold projetado para capturar debris/trash do well stream durante operacoes de flowback. Composto por plug valves ou slab gate valves, catcher-cylinder, high-pressure fittings e manometro.
Muito usado em operacoes de flowback, well clean-up e surface well test. Projetado para manusear alta pressao e trabalhar em ambientes agressivos.
| Tipo | Plug Valve Manifold com Catcher-Cylinder |
| Pressao | 5.000 / 10.000 / 15.000 PSI (35 / 70 / 105 MPa) |
| Material Class | AA / BB / CC / DD / EE / FF / HH (NACE compliant de DD) |
| Specification Level | PSL 1 – PSL 4 |
| Performance Level | PR 1 / PR 2 |
| Working Temperature | LU (-46 deg C a 121 deg C) |
| Environment Temperature | -60 deg C a +40 deg C |
| Catcher Barrel (in) | 3 | 4 | 5 | 6 | 7 |
| Inlet Connection | 2″ Fig.1502 / 3″ Fig.1502 / API Flange 3-1/16″-10K/15K / 4-1/16″-10K/15K / 5-1/8″-5K | ||||
| Outlet Connection | 2″ Fig.1502 / 3″ Fig.1502 / API Flange 3-1/16″-10K/15K / 4-1/16″-10K/15K / 5-1/8″-5K | ||||
| Class | Oper. Min (C) | Oper. Max (C) | Test Min (C) | Test Max (C) |
| K | -60 | 82 | -75 | 180 |
| L | -46 | 82 | -50 | 180 |
| N | -46 | 60 | -50 | 140 |
| P | -29 | 82 | -20 | 180 |
| S | -18 | 60 | 0 | 140 |
| U | -18 | 121 | 0 | 250 |
| X | -18 | 180 | 0 | 350 |
R$ 95.000 – R$ 380.000 / Conjunto
Preco varia conforme pressao, tamanho do barrel e configuracao. Pedido minimo: 1 Conjunto. Prazo: 30-45 dias.
