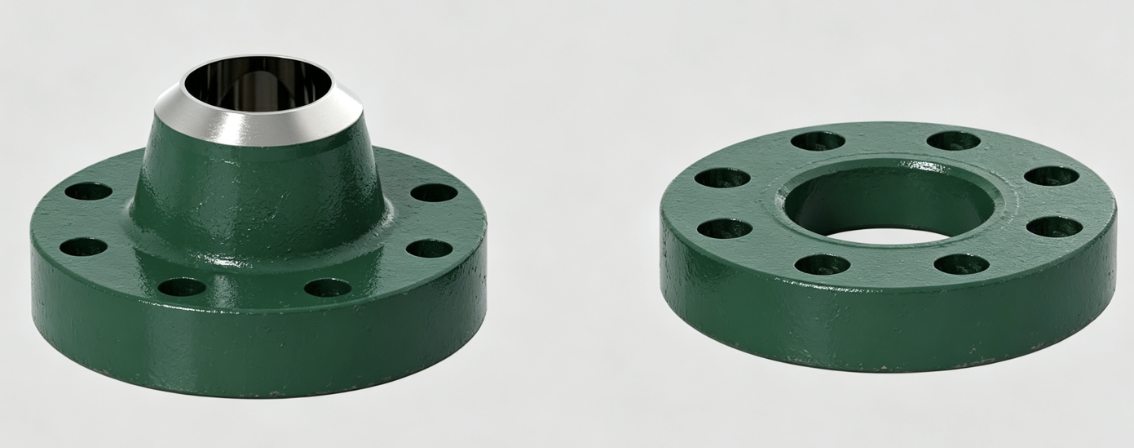

API 6B • API 6BX • 2.000 – 20.000 PSI • AISI 4130 Forjado
| Caracteristica | Descricao |
|---|---|
| Tipos Completos | Weld Neck, Blind, Threaded, Test, Target, Companion – atende todas aplicacoes. |
| Forjado AISI 4130 | Corpo forjado em aco liga de alta resistencia (ASTM A29). Tratamento termico certificado. |
| API 6B / 6BX | Ambas as normas: 6B ring joint (75K yield), 6BX raised face para HP. |
| Raised Face / RTJ | Face elevada ou RTJ ring groove para selagem energizada. |
| Range Completo | 1-13/16″ a 21-1/4″, pressoes 2K a 30K PSI. |
| Sour Service H2S | NACE MR0175 / ISO 15156, studs B7M para servico acido. |
| Corrosion Resistance | Overlay SS 316L ou Inconel 625 opcional para maior vida util. |
| Dimensional Confiavel | Conforme API 6A – bore, centerline-to-face, bolt circle, ring groove. |
| Tipo | Descricao | Aplicacao |
|---|---|---|
| Weld Neck (WN) | Flange com cubo/hub alongado para solda de tubo | Conexoes permanentes para HP systems |
| Blind (BL) | Flange sem abertura – totalmente fechado | Fechamento extremidades / teste pressao |
| Threaded (TH) | Flange roscado internamente para conexao | Conexoes roscadas de alta pressao |
| Test | Blind com conexao instrumentada (1/2″ NPT) | Pressure testing wellhead stack |
| Target | Blind com projeteis de tiro para teste cementacao | Teste de cimentacao em casing |
| Companion (Companion Flange) | Par de flanges roscados para hammer union | Conexoes Fig 602/1002/1502 |
| Parametro | Valor / Opcoes |
|---|---|
| Padrao | API Spec 6A (ultima edicao), API 6B / 6BX, ASME B16.5, NACE MR0175, ISO 9001 |
| Material | AISI 4130 (Low Alloy Steel), AISI 4140, ASTM A29 |
| Material Optional | 316L Stainless Steel, Inconel 625/718 overlay, ASTM A105 |
| Working Pressure | 2.000 – 30.000 PSI (2K / 3K / 5K / 10K / 15K / 20K / 30K) |
| Tamanhos (Nominal Bore) | 1-13/16″ – 21-1/4″ (46 mm – 540 mm) |
| Material Class | AA, BB, CC, DD, EE, FF (AA-HH para 6BX) |
| Temp Class | K, L, N, P, R, S, T, U, V, X (ate 345°C) |
| PSL | PSL 1, PSL 2, PSL 3, PSL 3G, PSL 4 |
| PR | PR 1, PR 2 |
| Flange Types | Weld Neck / Blind / Threaded / Test / Target / Companion |
| Face Type | Raised Face (RF), Ring Type Joint (RTJ) |
| Ring Number | RX (energized), BX (energized HP), R (oval/octagonal) |
| Stud Bolts | B7 / B16 / B7M (NACE), ASTM A193/A194 |
| Working Medium | Oleo, Gas Natural, Lama, Gas com H2S / CO2, Steam |
| Identification | ID unico + serial number + rastreamento MTC EN 10204 3.1 |
| NPS (in) | Número de Parafusos | Diam. Parafuso × Comprimento (mm) | Diam. Circulo Parafusos (mm) | Ring Number |
|---|---|---|---|---|
| 2-1/16″ | 8 | 7/8″ x 160 | 194 | RX-21 / BX-152 |
| 2-9/16″ | 8 | 1″ x 180 | 241 | RX-24 / BX-153 |
| 3-1/8″ | 8 | 1-1/8″ x 200 | 270 | RX-25 / BX-154 |
| 4-1/16″ | 8 | 1-1/4″ x 220 | 308 | RX-37 / BX-155 |
| 5-1/8″ | 8 | 1-1/2″ x 270 | 371 | RX-39 / BX-156 |
| 7-1/16″ | 12 | 1-3/8″ x 290 | 433 | RX-45 / BX-157 |
| Tipo Flange | Tamanho (in) | Pressao (PSI) |
|---|---|---|
| Weld Neck | 1-13/16″ – 11″ | 2.000 – 5.000 |
| Blind / Threaded | 1-13/16″ – 21-1/4″ | 2.000 – 5.000 |
| Blind / Threaded | 1-13/16″ – 20-3/4″ | 3.000 |
| Blind / Threaded | 1-13/16″ – 11″ | 5.000 |
| API 6BX (Weld Neck) | 1-13/16″ – 21-1/4″ | 10.000 – 30.000 |
| Caracteristica | API 6B | API 6BX |
|---|---|---|
| Tipo Face | Ring Type Joint (RTJ) | Raised Face (RF) com BX ring |
| Pressao Max | 5.000 PSI | 30.000 PSI |
| Tamanho Max | 21-1/4″ | 21-1/4″ |
| Yield Strength | 75 ksi min | 75 ksi min (HP standards) |
| Ring Numbers | RX-series | BX-series (energized self-tightening) |
| Aplicacao | Standard service, wellhead padrao | HP / High-pressure wellhead & manifolds |
| Item | Especificacao |
|---|---|
| Teste Hidrostatico | API 6A – 1.5x WP, 30 min hold, 100% lote |
| Hardness Test | Brinell / Rockwell por lote conforme material class |
| PMI | 100% Positive Material Identification ASTM E572 |
| UT Testing | 100% UT conforme ASME V (RTJ groove, weld neck hubs) |
| MT/PT | Surface defect inspection (RTJ faces, weld bevels) |
| Dimensional | Conformidade dimensional 100% com API 6A |
| Certificado | EN 10204 3.1 MTC + API 6A traceability + ID unico |
|
• Wellhead Assembly – extremidades de casing/tubing • Christmas Tree – WN flanges para solda em HP manifolds • BOP Stack – transicoes entre preventers (10K-15K) • Choke & Kill Manifolds – ambos os lados soldaveis • Production Manifolds – HP ate 20K PSI • Test Stack – Test / Blind com furo 1/2″ NPT • Casing Test Plug – Target flange para teste cimentacao • Offshore Platforms – permanente vs test connections • Shipbuilding / Naval – flange de alta pressao marinha |
Cotacao por tipo, tamanho, pressao e material
