Marca: CAMTOP SHANGHAI | Certificacao: API 6A, NACE MR0175

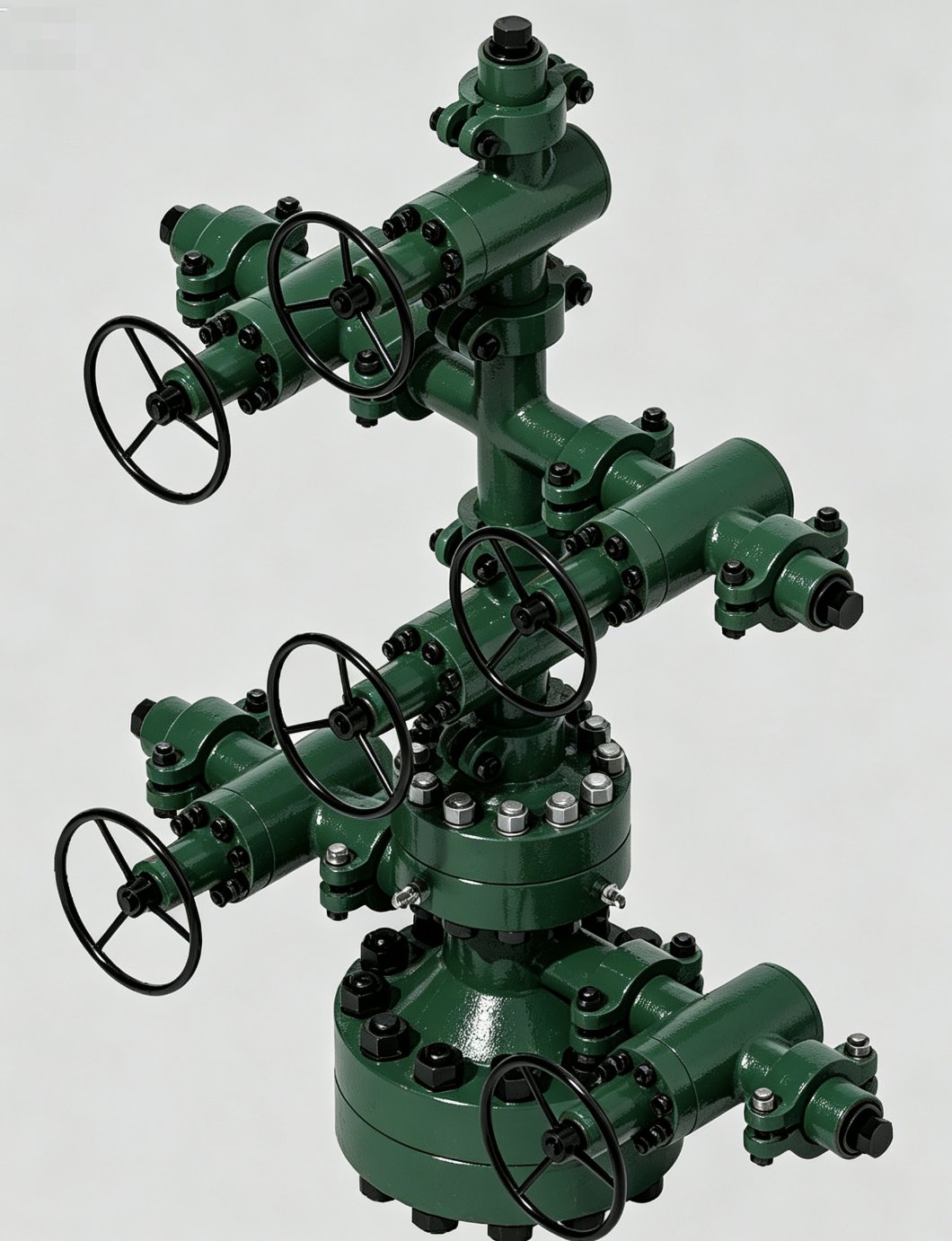

A Thermal Wellhead Assembly CAMTOP e equipamento especial para recuperacao de oleo pesado. Adequada para steam huff and puff, steam flooding, hot water circulation, naphthenic alkyl e mixed base mildly corrosive crude oil recovery, e operacoes gerais de producao de oleo.
Valve body, valve cover, valve plate e valve stem sao fabricados com materiais de excelente resistencia a high temperature creep, entao a valvula completa suporta temperatura de ate 380 deg C. Sob alta temperatura e alta pressao, a valvula nao deforma quando aberta ou fechada. Os sealing rings mantem boa performance de vedacao mesmo a 380 deg C.
| Modelo | Config 1 | Config 2 | Config 3 |
| Pressao | 2.000 PSI | 3.000 PSI | 5.000 PSI |
| Main Diameter | 2-9/16″ | 2-9/16″ | 2-9/16″ |
| Bypass Diameter | 2-9/16″ | 2-9/16″ | 2-9/16″ |
| Valve Type | Gate Valve | Gate Valve | Gate Valve |
| Modelo | KR78/65-14 | KR78/65-21 | KR78/65-35 |
| Pressao Nominal | 2.000 PSI | 3.000 PSI | 5.000 PSI |
| Max Temperatura | 311 deg C | 337 deg C | 370 deg C |
| Nominal Diameter | 103/78/65 mm | 103/78/65 mm | 103/78/65 mm |
| Working Medium | Crude oil/gas/steam | Crude oil/gas/steam | Crude oil/gas/steam |
| Design Standard | API 6A, NACE MR0175 |
| Material Class | AA / BB / CC / DD / EE / FF |
| Temperature Rating | Y (-18 a +345 deg C) – ate 380 deg C |
| Specification Level | PSL 1 – PSL 4 (PSL 3G) |
| Performance Requirement | PR 1 / PR 2 |
| Working Medium | Heavy Oil + Saturado Steam |
| Sealing Material | Grafoil / Grafoil composite (alta temperatura) |
R$ 65.000 – R$ 280.000 / Conjunto
Preco varia conforme pressao, diametro e configuracao. Pedido minimo: 1 Conjunto. Prazo: 35-60 dias.
Envie suas especificações e receba uma cotação competitiva em até 24 horas
