Marca: CAMTOP SHANGHAI | Certificacao: API 6A, NACE MR-0175, ISO 15156, ASME B31.3, PED 97/23/EC

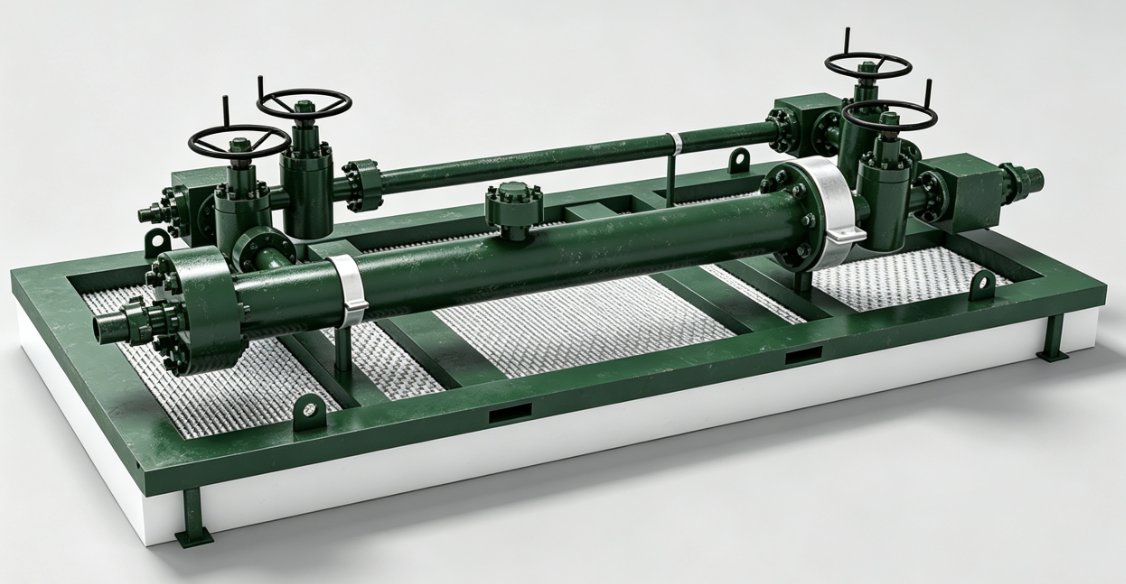

O Single Barrel Debris Catcher CAMTOP e composto por um barril com elemento de separacao, slab gate valves ou plug valves, subbed tees/crosses, hammer unions, flanges, fasteners, supports e skid com lifting lugs.
Muito usado em operacoes de flowback, well clean-up e well testing. Projetado para manusear alta pressao e trabalhar em ambientes agressivos. Equipamento compacto de alta eficiencia para remocao de debris do well stream.
| Tipo | Single Barrel Debris Catcher |
| Pressao | 5.000 / 10.000 / 15.000 PSI (35 / 70 / 105 MPa) |
| Material Class | AA / BB / CC / DD / EE / FF / HH (NACE compliant de DD) |
| Specification Level | PSL 1 – PSL 4 |
| Performance Level | PR 1 / PR 2 |
| Working Temperature | LU (-46 deg C a 121 deg C) |
| Environment Temperature | -60 deg C a +40 deg C |
| Catcher Barrel (in) | 3 | 4 | 5 | 6 | 7 |
| Inlet Connection | 2″ Fig.1502 / 3″ Fig.1502 / API Flange 3-1/16″-10K/15K / 4-1/16″-10K/15K / 5-1/8″-5K | ||||
| Outlet Connection | 2″ Fig.1502 / 3″ Fig.1502 / API Flange 3-1/16″-10K/15K / 4-1/16″-10K/15K / 5-1/8″-5K | ||||
R$ 75.000 – R$ 280.000 / Conjunto
Preco varia conforme pressao e tamanho do barrel. Pedido minimo: 1 Conjunto. Prazo: 25-40 dias.
Envie suas especificações e receba uma cotação competitiva em até 24 horas
