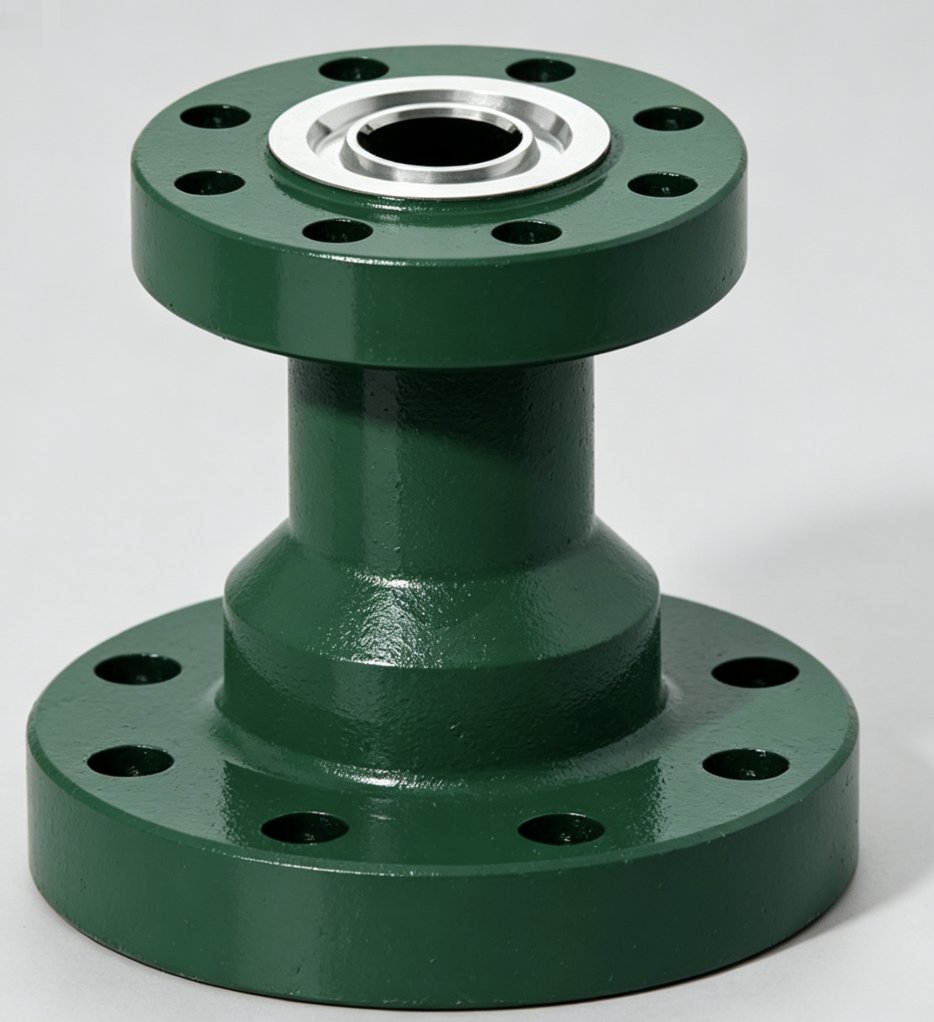

Adaptador flanges • Comprimento customizado • 2.000 – 20.000 PSI • Side Outlets opcionais
| Caracteristica | Descricao |
|---|---|
| Comprimento Customizado | Length sob projeto – 6″ a 120″ comum, ate 10ft+ para usos especiais. |
| 3 Tipos Principais | Spacer / Riser / Drilling – atende todas as aplicacoes wellhead. |
| Side Outlets Opcionais | 2 ou 4 saidas laterais para choke manifold / kill lines / instruments. |
| Forjado AISI 4130 | Corpo forjado em aco liga de alta resistencia mecanica e termica. |
| RTJ Face Connector | Ring groove usinado para selagem energizada metal-metal. |
| Sour Service H2S | NACE MR0175 / ISO 15156, studs B7M + Inconel overlay opcional. |
| Pressure Tap | Furo 1/2″ NPT para teste pressao entre flanges. |
| Compatibilidade OEM | Dimensional compat Cameron / OEM padrao industria. |
| Tipo | Descricao | Aplicacao Tipica |
|---|---|---|
| Spacer Spool | Comprimento curto (ate ~30″), flange-a-flange simples sem side outlets | Ajuste de altura entre wellhead components |
| Riser Spool | Comprimento longo (30″ – 120″+), tubular cilindro alto | Subsea riser, ajustesverticais high |
| Drilling Spool | 2-4 side outlets para choke/kill lines + instruments | BOP stack choke / kill manifold interconnections |
| Production Spool | Versao para christmas tree production | Production manifold interconnections |
| Adapter Spool | Combina flange diferente top x bottom | Transicao entre conexoes de diferentes pressoes/tamanhos |
| Test Spool | Spool com furo de teste instrumentado | Pressure testing wellhead stack |
| Componente | Material | Funcao |
|---|---|---|
| Body (tubular) | AISI 4130 forjado | Corpo cilindrico principal com comprimento customizado |
| Top / Bottom Flange | AISI 4130 forjado | Faces usinadas com ring groove RTJ |
| Side Outlets (Drilling) | AISI 4130 / Studded | 2-4 saidas para choke / kill / instruments |
| Pressure Tap | Inox 316 | 1/2″ NPT para teste de pressao |
| Ring Gaskets | SS 316L / Inconel 625 | RTJ ring em ambas extremidades |
| Stud Bolts + Nuts | B7 / B16 / B7M | Conexao flange-a-flange |
| Parametro | Valor / Opcoes |
|---|---|
| Padrao | API Spec 6A, API 16A (Drilling Spool), NACE MR0175 / ISO 15156 |
| Material | AISI 4130 (Low Alloy Steel forjado), ASTM A29 |
| Material Optional | 316L Stainless Steel, Inconel 625/718 overlay |
| Working Pressure | 2.000 – 20.000 PSI (2K / 3K / 5K / 10K / 15K / 20K) |
| Tamanhos (Nominal Bore) | 1-13/16″ – 30″ |
| Comprimentos | 6″ – 120″+ (Spacer 6-30″, Riser 30-120″, Drilling 24-72″) |
| Material Class | AA, BB, CC, DD, EE, FF, HH |
| Temp Class | K (-60°C) ate X (+345°C) |
| PSL | PSL 1, PSL 2, PSL 3, PSL 3G, PSL 4 |
| PR | PR 1, PR 2 |
| Side Outlets (Drilling) | 2-4 salidas, studded ou flanged, de 2″ ate 4-1/16″ |
| Pressure Tap | 1/2″ NPT padrao em todos os spools |
| Ring Gasket | RX / BX conforme pressao |
| Stud Bolts | B7 / B16 / B7M (NACE) |
| Working Medium | Oleo, Gas Natural, Lama, Gas com H2S / CO2 |
| Identification | ID unico + serial + EN 10204 3.1 MTC |
| Body Bore | Side Outlets | Tipo | Working Pressure | Comprimento Padrao |
|---|---|---|---|---|
| 7-1/16″ | 2 x 2-1/16″ 5K | Drilling Spool | 5.000 PSI | 36″ / 48″ |
| 11″ | 2 x 3-1/8″ 5K | Drilling Spool | 5.000 PSI | 48″ / 60″ |
| 13-5/8″ | 2-4 x 3-1/8″ 5K/10K | Drilling Spool | 5.000 / 10.000 PSI | 48″ / 60″ / 72″ |
| 13-5/8″ | 2-4 x 4-1/16″ 10K | Drilling Spool | 10.000 PSI | 60″ / 72″ |
| 21-1/4″ | 2-4 x 4-1/16″ 5K | Drilling Spool | 5.000 PSI | 60″ / 72″ / 84″ |
| 30″ | 2-4 x 4-1/16″ 3K | Drilling Spool | 3.000 PSI | 72″ / 84″ |
| Caracteristica | Spacer | Riser | Drilling |
|---|---|---|---|
| Comprimento | Curto (6-30″) | Longo (30-120″+) | Medio (24-72″) |
| Side Outlets | Nenhum (padrao) | Nenhum | 2-4 obrigatorio |
| Aplicacao | Ajuste altura | Vertical run | BOP manifold |
| Pressure tap | Sim | Sim | Sim |
| Padrao API | 6A | 6A | 6A / 16A |
| Item | Especificacao |
|---|---|
| Teste Hidrostatico | API 6A – 1.5x WP, 30 min hold, 100% do lote |
| Hardness Test | Brinell / Rockwell por lote |
| PMI | 100% Positive Material Identification ASTM E572 |
| UT Testing | 100% UT conforme ASME V (corpo + side outlets) |
| MT/PT | Surface defect inspection |
| Dimensional | Conforme API 6A Bore / Face / Ring / Side outlet location |
| Pressure Tap Test | Verificacao do furo 1/2″ NPT |
| Certificado | EN 10204 3.1 MTC + API 6A traceability + ID unico |
|
• Wellhead Assembly – ajuste altura entre christmas tree e BOP • BOP Stack – drilling spool interconecta annular/ram preventers • Choke & Kill Manifolds – side outlets para choke manifold HP • Production Manifolds – substituicao de valvulas sem cortar soldas • Riser System – ajuste vertical em subsea / offshore • Test Spools – teste de pressao de wellhead stacks • Coiled Tubing Manifold – altura customizada para CT units • Offshore Platforms – soldado / bolted junction systems • Drilling Floor Equipment – interconnections rig floor |
