Marca: CAMTOP SHANGHAI | Certificacao: API 6A, NACE MR0175

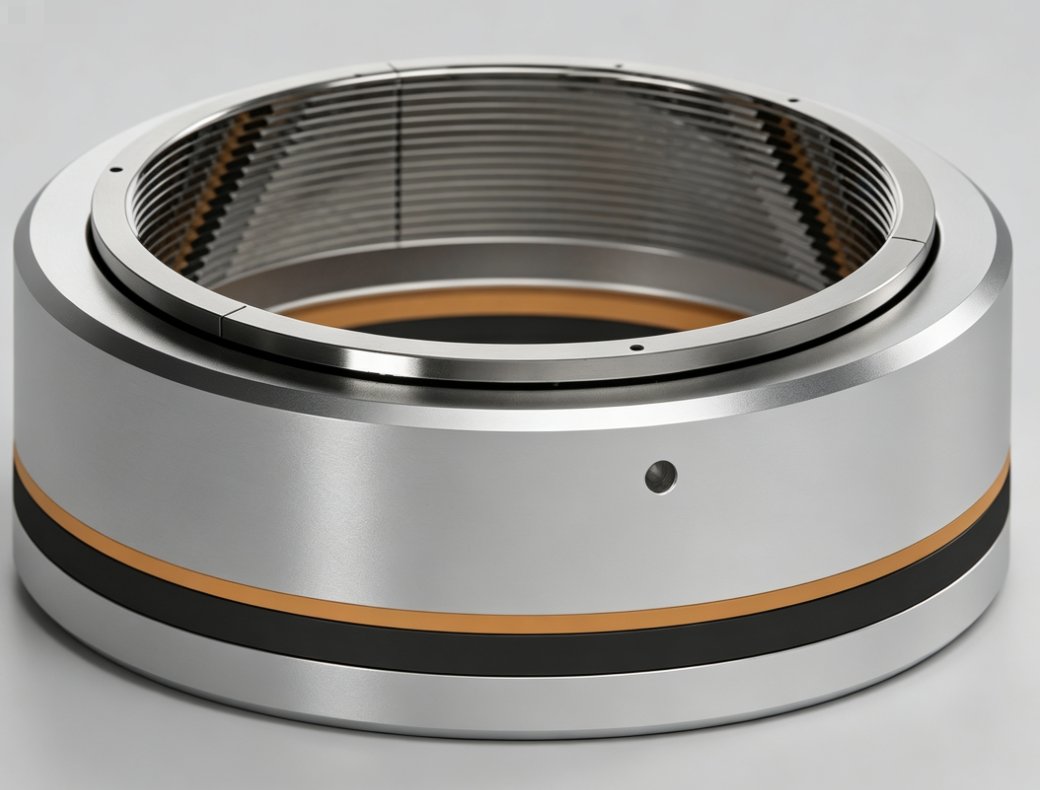

A Casing Hanger CAMTOP API 6A e subassembly do wellhead assembly que suporta a casing string quando ela e corrida no poco. Garante que o casing esteja corretamente posicionado. Quando a casing string e corrida no poco, ela e suspensa pela casing hanger, que repousa em landing shoulder dentro do casing spool.
Casing hangers devem suportar o peso total do casing e prover seal entre a casing hanger e o spool. Suporta ate 80% da pipe body yield strength (auto-type).
| Tipo | Descricao |
| Slip-Type | Convencional e mais usado. Suporta 60% do pipe body yield strength. |
| Mandrel-Type | Usado para special needs. Threaded type / Core shaft. |
| Auto Casing Hanger | Critical service, deep wells. Suporta 80% do pipe body yield strength. |
| Non-Auto Casing Hanger | General service. Suporta 60% do pipe body yield strength. |
| Tipo | Descricao |
| G-Type | Manually-energized sealing structure |
| W-Type | Self-weight energized sealing structure |
| WD-Type | Casing head + surface casing; slip insert com external force |
| WE-Type | Manually-energized sealing |
| C-21 / C-22 / C-29 | CAMTOP series (C-21 / C-22 Standard, C-29 sob consulta) |
| Design Code | API 6A, NACE MR0175 |
| Pressao | 2.000 – 20.000 PSI |
| Casing Size | 5-1/2″ – 20″ |
| Nominal Bore | 11″ – 21-1/4″ |
| Bypass Bore | 1-13/16″ – 4-1/16″ |
| Material Class | AA / BB / CC / DD / EE / FF / HH |
| Temp Class | L / P / R / S / T / U / V |
| Specification Level | PSL 1 – PSL 3 (PSL 3G) |
| Performance Requirement | PR 1 / PR 2 |
| Main Material | Alloy Steel Forged |
| Casing Hanger | Capacidade | Selagem |
| Slip-Type | 60% pipe body yield | Manual / Self-weight |
| Auto | 80% pipe body yield | Automatica (com release de peso) |
R$ 5.000 – R$ 35.000 / Unidade
Preco varia conforme tipo (Slip / Mandrel / Auto), tamanho e capacidade. Pedido minimo: 1 Unidade. Prazo: 20-40 dias.
Envie suas especificações e receba uma cotação competitiva em até 24 horas
