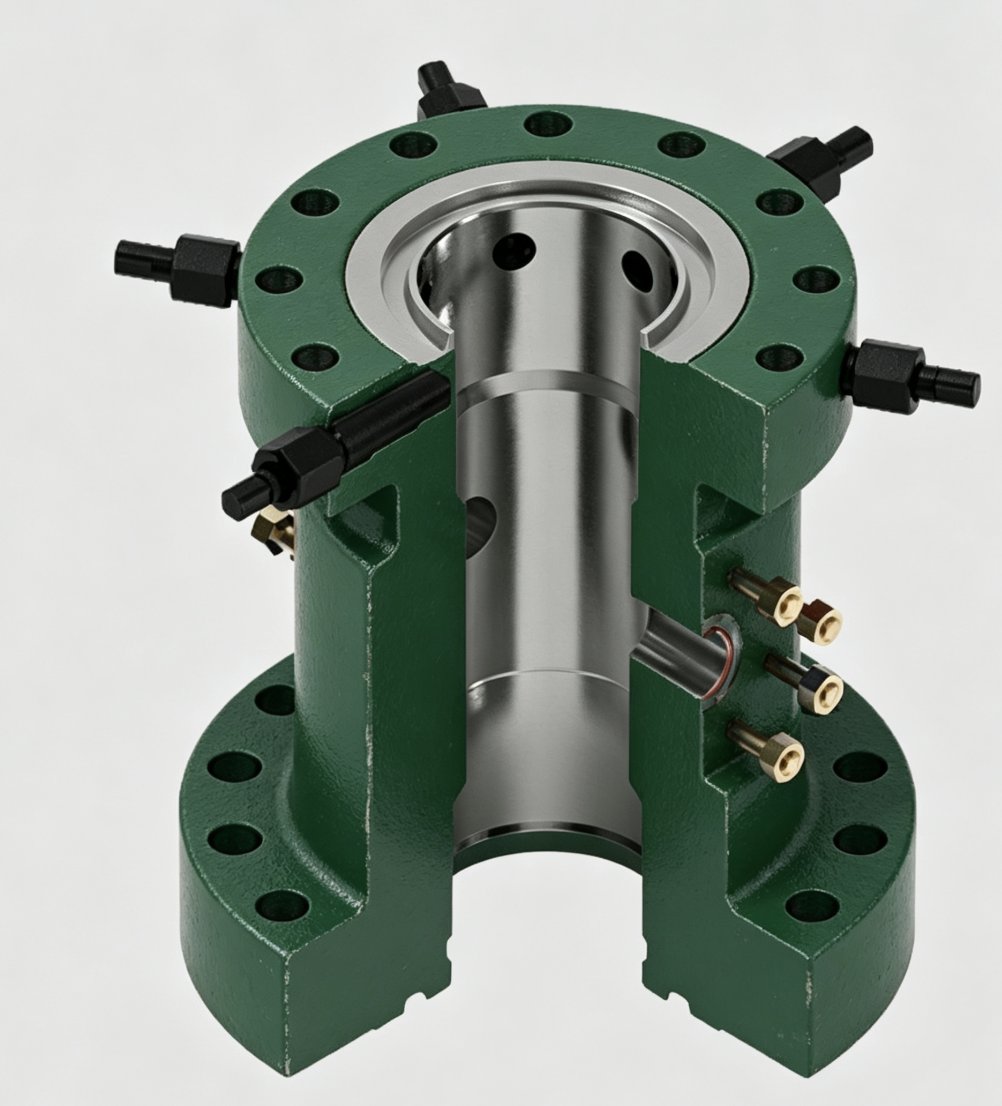

API 6A Tubing Head Spool (TCM Series)

Marca: CAMTOP SHANGHAI | Certificacao: API 6A, NACE MR0175

Descricao

A Tubing Head Spool CAMTOP TCM Series apresenta design straight bore versatile para single e multiple completions. Aceita todos TC series tubing hangers e facilmente converte de single completion para multiple completions com adicao e alignment pin(s).

Como spool no wellhead assembly, contem a pressura mais alta do wellhead, e possui load shoulder para pendurar o tubing hanger e tubing string. Quando o poco e completado, a tree e instalada no topo da head com tubing head adapter.

Elimina o problema de “wedgelocking” do bowl protector, BOP test plugs e tubing hangers. Valve Removal (VR) threads standard em todos flanged ou studded tubing head outlets.

Caracteristicas

• Straight-bore design versatile
• 45 deg landing shoulder para max loads
• Converte single para multiple completions
• Straight bore bowl com aligning pins variaveis
• Lock-down screw mechanism (pack-off tubing hanger retention)
• VR threads standard
• Caracteristica secundaria de seal mechanism

Outlets

• Line Pipe Outlets
• Studded Side Outlets

Tubing Hanger Compatibility

• WTCM tubing heads aceitam varios estilos de tubing hanger
• Mandrel type
• Wrap-around type

Bottom Preparations

• PE/BG bottom (standard) – PE secondary seal bushing
• HPE bottom (high pressure) – HPE secondary seal bushing

Bottom Connections

• Bolt-through flange
• Studded flange
• Clamp-hub
• Slip-on weld
• Threaded

Especificacoes Tecnicas

Pressao	2.000 – 20.000 PSI
Nominal Bore	7-1/16″ – 13-5/8″
Working Medium	Oleo, gas natural, lama, agua, gas com H2S/CO2
Working Temperature	-46 a +121 deg C (Class LU)
Material Class	AA / BB / CC / DD / EE / FF / HH
Specification Level	PSL 1 – PSL 4 (PSL 3G)
Performance Requirement	PR 1 / PR 2

Configuracoes Tipicas

Top Flange	PSI	Bottom Flange	PSI	Bowl
9″	2.000	7-1/16″	2.000	7-1/16″
11″	2.000	7-1/16″	2.000	7-1/16″
11″	3.000	7-1/16″	3.000	7-1/16″
11″	5.000	7-1/16″	5.000	7-1/16″
11″	10.000	7-1/16″	10.000	7-1/16″
11″	10.000	9″	10.000	9″
11″	15.000	7-1/16″	15.000	7-1/16″
13-5/8″	3.000	11″	5.000	11″

C9 Sizes Padrao

• 7-1/16″ nominal bowl (padrao)
• 7-5/8″ production casing (compativel)
• Outras sizes disponiveis sob consulta

Aplicacoes

• Single completion (simples)
• Multiple completions (multiplas)
• Onshore / Offshore wells
• High-pressure deep wells
• Drilling + Completion operations
• Sour service (H2S / CO2)

Preco

R$ 20.000 – R$ 95.000 / Unidade

Preco varia conforme pressao, diametro e configuracao. Pedido minimo: 1 Unidade. Prazo: 30-50 dias.
